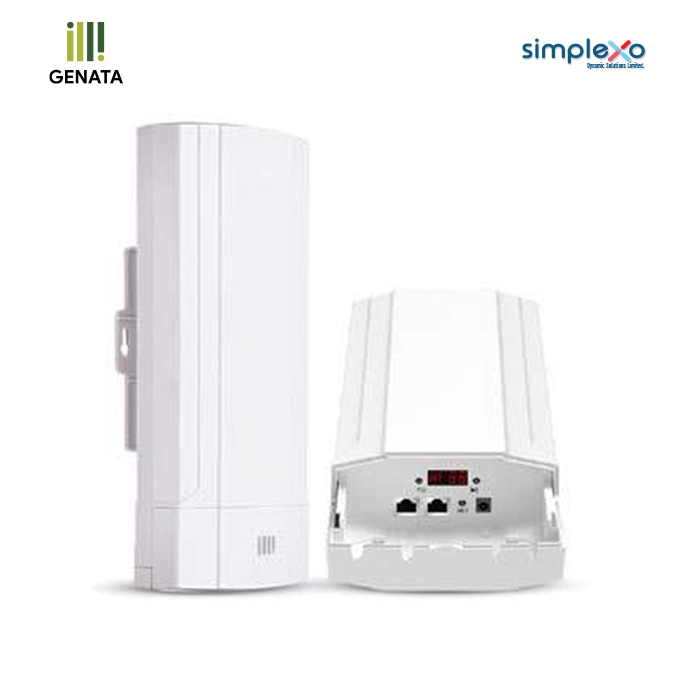

Genata GNT-CP955 5.8GHz 900Mbps High Quality 5KM Outdoor CPE/Wi-Fi Bridge

Model No.：	GNT-CP955
Size：	230 * 75 * 40mm
Warranty：	1 Year
Certification：	CE,RoHS
Feature A：	Visible LED Display, Signal strong/weak detection, Point to Point and Point to Multi-point wireless connection, More Simple for installation and debugging.
B：	6KV Lightning protection, 8KV Electro-static protection, More safety for ourdoor using.
C：	The transmission RF power is adjustable based on environment, Cut down RF power in place with high density of people or wireless AP, or increase RF power in long range place to improve the performance.

Category: GENETA

Description

Model: GNT-CP955
Standard	IEEE802.3, IEEE 802.11n, IEEE 802.11a
Frequency	5.180 – 5.825 GHz GNT-CP955
Channel	CH36 ~CH165
Modulation	OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Data Rate	11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic)
Protocol	CSMA/CA、CSMA/CD、TCP/IP、ICMP、NAT、PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS
Operation Mode	AP, Gateway, Bridge, WISP, WDS
Security	64/128bit WEP WPA(AES、TKIP with IEEE 802.1x) WPA2(AES、TKIPwith IEEE 802.1x) WPS GNT-CP955
RF Output Power	802.11n:MCS7 19±2 DB, MCS0 22±2DB. 802.11a:54M 20±2DB,6M23±2DB.
Receive Sensitivity	802.11n: -68dbm@MCS7; -88dbm@MCS7; 802.11a:-72dbm@54Mbps; -92dbm@6Mbps;
Antenna	14dBi MIMO Panel antenna
Size (mm)	115mm * 69 mm * 1.6 mm
Working Temperature	-40°C ~ 55°C
Storage Temperature	-40°C ~ 70°C
Humidity	10% ~ 90% (Non-condensing)
Interface	1 * RJ-45 WAN Port 1 * RJ-45 LAN Port 1 * Reset Button 1 * DC Jack 1 * WDS Switch Button, press to do WDS connection GNT-CP955
Power	Output: DC12V(POE 24V/0.5A), 1A; Input: 110V/220V
LED Light	Power,WiFi, WAN, LAN，Signal Strength
